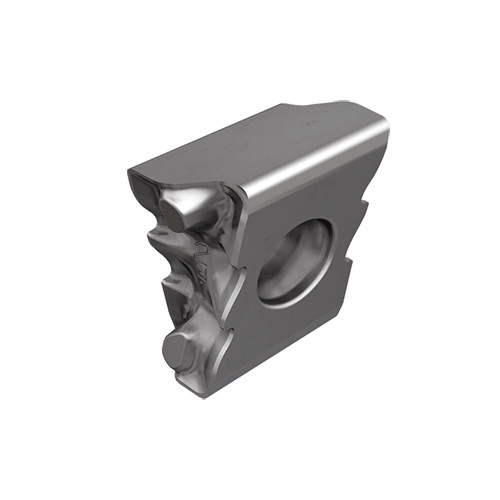

LNMT 1506PN-R TS IC928
Milling Insert; LNMT1506PNR TS IC928 IC928 × 0.236″ Width × 0.547″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC928 |
| Application | | Facing | Shouldering | Slotting | | Shape | Rectangle |
| Insert Length (INSL) | 0.591″ | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.472″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.547″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | TANGMILL - Tangentially clamped inserts with a serrated cutting edge for chip splitting. Improve tool stability, enable high tooth load capability, reducing power consumption. | Country of Origin | Israel |
| Remarks | Self balanced forces on rake face Used for long overhang and extended flute cutters, reduces chattering. |
Shipping Info
Package Weight
0.028
