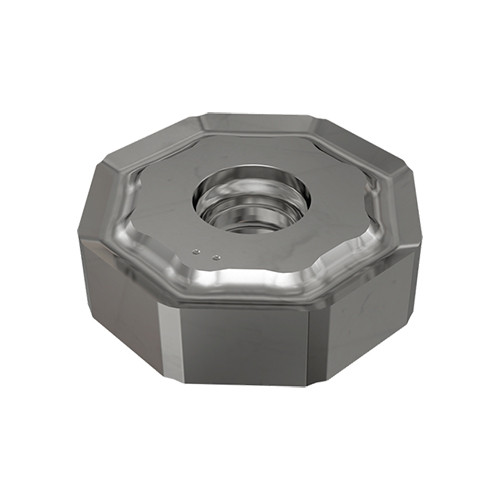

ONHU 080600-N-PL IC910
Milling Insert; ONHU080600NPL IC910 IC910 × 0.236″ Thickness ; Carbide ; AlTiN

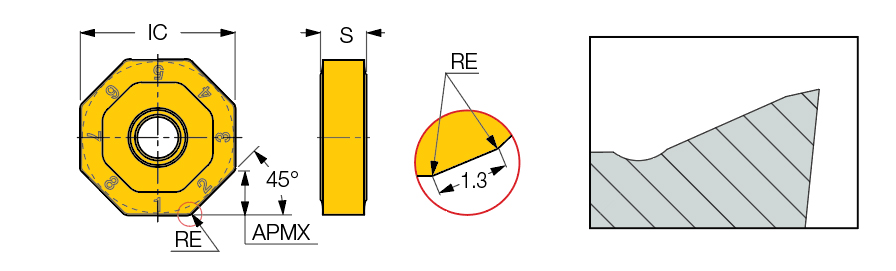

| Applicable Material | | Steel | Cast Iron | | Shape | 135° Octagon |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0157 ″/tooth |
| Corner Radius (RE) | 0.0157″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.217″ | Tool Type | Double sided Inserts |
| Inscribed Circle Diameter (IC) | 0.795″ | Minimum Feed per Tooth (fz(min)) | 0.0098 ″/tooth |
| Insert Thickness (S) | 0.236″ | Number of Cutting Edges | 16 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
| Grade | IC910 |
Product Features
| Family Description | 16MILL, Octagonal inserts with a sharp edge and positive land. Eliminate edge chipping on cast iron components. | Country of Origin | Israel |
Shipping Info
Package Weight
0.058
