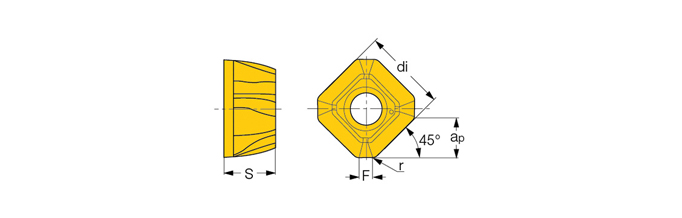

S45MT 1106AP-N
Milling Insert; S45MT1106APN IC950 IC950 × 0.236″ Thickness
| Applicable Material | Steel|Cast Iron | Grade | IC950 |
| Application | | Facing | Milling Inserts | Profiling | | Shape | Square |
| Corner Radius (RE) | 0.031″ | Maximum Feed per Tooth (fz(max)) | 0.0098 inch/tooth |
| Depth of Cut Maximum (APMX) | 0.205″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.465″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0059 inch/tooth |
| Wiper Edge Length (BS) | 0.094″ | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
Product Features
| Family Description | CHAMMILL indexable milling insert with 4 cutting edges for 45° facing. Part of the CHAMELEON multi-functional line. | Country of Origin | Israel |
