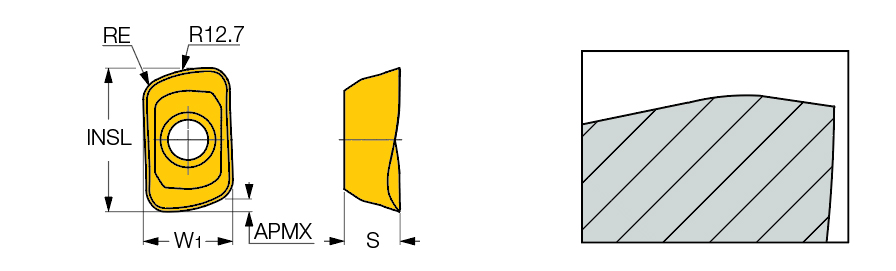

ADCT 1505R8PL-FF IC330
| Applicable Material | Steel|Stainless Steel|Hi-Temp Alloys | Grade | IC330 |
| Application | | Facing | Milling Inserts | Profiling | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.622″ | Maximum Feed per Tooth (fz(max)) | 0.0591 inch/tooth |
| Corner Radius (RE) | 0.106″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.059″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.39″ | Minimum Feed per Tooth (fz(min)) | 0.0315 inch/tooth |
| Insert Thickness (S) | 0.24″ | Measurement Type | Metric |
| Coating | TiCN|TiN | Body Material | Carbide |
Product Features
| Family Description | Inserts for fast feed milling. | Country of Origin | Israel |
| Remarks | The cutting diameter of the tool is .02″ larger than the nominal diameter when using this insert. Tool corner should be modified to .08″. At D.O.C. larger than apmax, regular insert feed should be applied. |
Shipping Info
Package Weight
.0180
