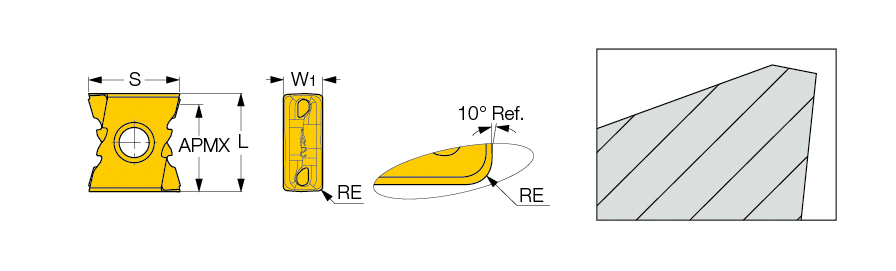

LNMT 1506PN-R TS IC4050
Milling Insert; 0.591″ Length × 0.236″ Width × 0.547″ Thickness ; IC4050 ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Grade | IC4050 |
| Application | | Facing | Milling Inserts | Profiling | | Shape | Rectangle |
| Cutting Edge Length (L) | 0.591″ | Maximum Feed per Tooth (fz(max)) | 0.0079 inch/tooth |
| Corner Radius (RE) | 0.031″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.472″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0039 inch/tooth |
| Insert Thickness (S) | 0.547″ | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
Product Features
| Family Description | TANGMILL - Tangentially clamped inserts with a serrated cutting edge for chip splitting. Improve tool stability, enable high tooth load capability, reducing power consumption. | Country of Origin | Israel |
| Remarks | Self balanced forces on rake face Used for long overhang and extended flute cutters, reduces chatter. |
Shipping Info
Package Weight
0.027
