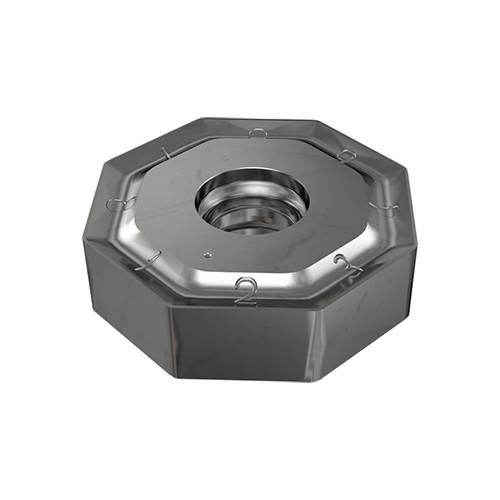

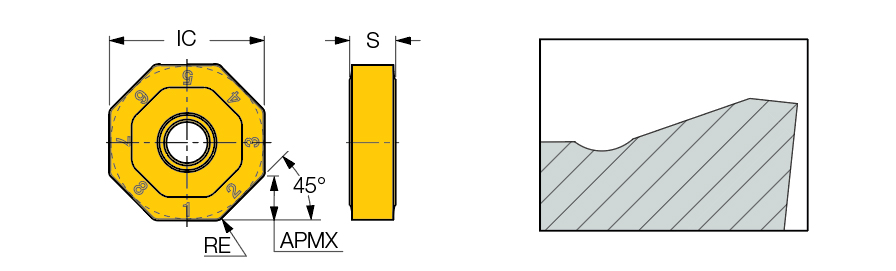

ONHU 080608-TN-MM IC950
Milling Insert; ONHU080608TNMMIC950 IC950 × 0.236″ Thickness ; Carbide
| Applicable Material | | Steel | Cast Iron | | Shape | 135° Octagon |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.217″ | Tool Type | Double sided Inserts |
| Inscribed Circle Diameter (IC) | 0.795″ | Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Insert Thickness (S) | 0.236″ | Number of Cutting Edges | 16 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Inch |
| Grade | IC950 | Body Material | Carbide |
Product Features
| Family Description | 16MILL, octagonal milling inserts with 16 cutting edges. Used for machining steel. | Country of Origin | Israel |
| Remarks | For FEEDMILL tools, see the feed conditions on the FF NM tools. |
Shipping Info
Package Weight
0.051
