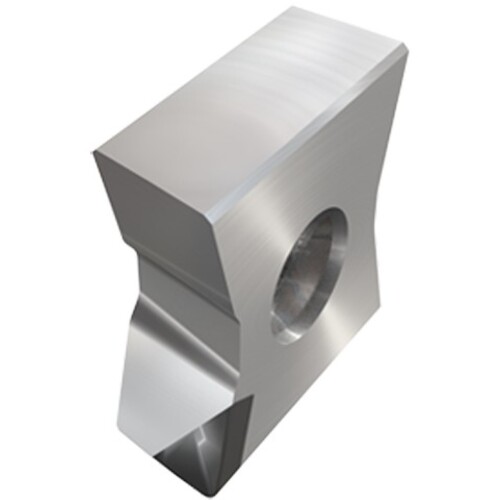

LNAW 1506PNTR-S * IB55
Milling Insert; LNAW1506PNTRSIB55 IB55 × 0.236″ Width × 0.547″ Thickness ; PCBN ; Uncoated
| Applicable Material | | Cast Iron | Hard Materials | | Grade | IB55 |
| Application | | Facing | Milling Inserts | Shouldering | | Shape | Rectangle |
| Insert Length (INSL) | 0.591″ | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.197″ | Cutting Edge Material | PCBN |
| Insert Width (W1) | 0.236″ | Tool Type | Mill Ultra hard Inserts |
| Insert Thickness (S) | 0.547″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | TANGMILL inserts with a PCBN brazed tip. Use on F90LN milling cutters for machining hardened and cast steel with over 45 HRc, grey and nodular cast iron, powder compacted and sintered metals and heat resistant alloys. | Country of Origin | Italy |
| Remarks | The LNAW PN-R.. is .0012″ edge-honed for finishing applications, while the LNAW PNTR... has a chamfered edge for rough milling applications For D.O.C. and machining recommendations, click on "More Info" |
Shipping Info
Package Weight
0.032
