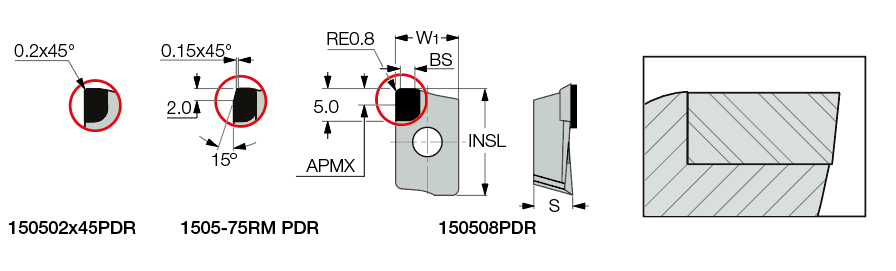

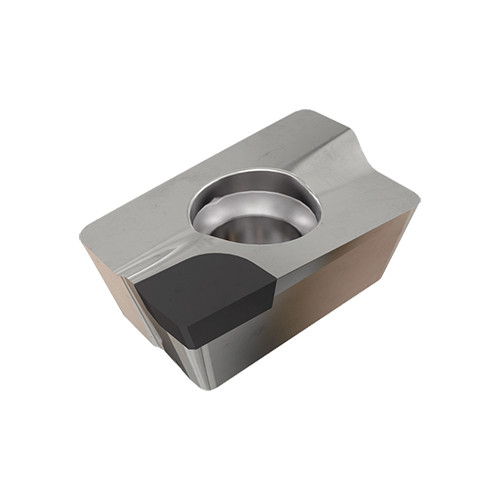

ADKW 1505-75RM PDR ID5
Milling Insert; 0.637″ Length × 0.378″ Width × 0.23″ Thickness ; ID5 ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shape | 85° Parallelogram |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Cutting Edge Length (L) | 0.637″ | Cutting Edge Material | PCD |
| Insert Length (INSL) | 0.637″ | Tool Type | Mill Ultra hard Inserts |
| Corner Radius (RE) | 0″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.177″ | Number of Cutting Edges | 1 |
| Insert Width (W1) | 0.378″ | Cutting Edge Effective Length (LE) | 0.079″ |
| Insert Thickness (S) | 0.23″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.079″ | Body Material | Carbide |
| Grade | ID5 |
Product Features
| Family Description | A single corner R.H. PCD tipped milling insert, used for machining aluminum with excellent surface finish results. ID 5 for aluminum with up to 12% silicon and ID8 for higher silicon contents. | Country of Origin | Israel |
| Remarks | The inserts are supplied with spare screws. For D.O.C and cutting speed data, see More Info |
Shipping Info
Package Weight
0.034
