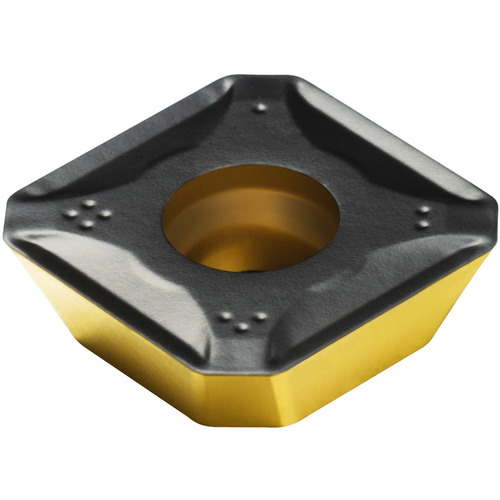

R24512T3MPL 4220 Insert
Milling Insert; 10 mm Length × 3.969 mm Thickness ; 4220 ; Carbide ; | Al2O3 | TiN | TiCN |
| Applicable Material | | Steel | Cast Iron | Hard Materials | | Grade | 4220 |
| Cutting Edge Length (L) | 10 mm | Shape | Square |
| Corner Radius (RE) | 1.5 mm | Insert Style | R245.12 T3 M-PL |
| Inscribed Circle Diameter (IC) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3.969 mm | Chip Breaker Type | PL |
| Insert Included Angle (EPSR) | 45 Degrees | Hole Diameter | 4.09 mm |
| Coating | | Al2O3 | TiN | TiCN | | Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.183
