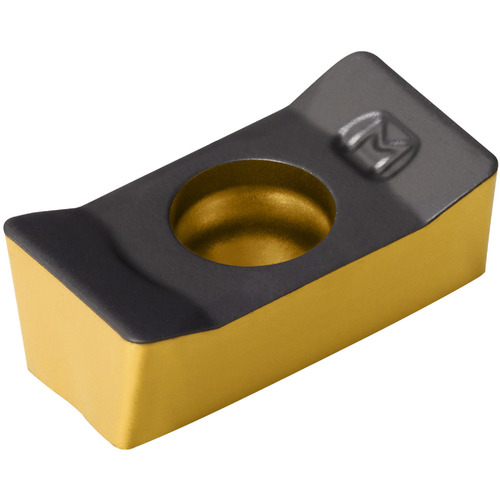

N3311A084508MPM 4230 Insert
Milling Insert; N3311A084508MPM 4230 4230 7.7 mm Length × 9.5 mm Width × 4.45 mm Thickness ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | Cast Iron|Stainless Steel|Steel | Grade | 4230 |
| Cutting Edge Length (L) | 7.7 mm | Shape | Rectangle |
| Corner Radius (RE) | 0.8 mm | Insert Style | N331.1A-08 45 08M-PM |
| Insert Width (W1) | 9.5 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 8.45 mm | Chip Breaker Type | PM |
| Insert Thickness (S) | 4.45 mm | Hole Diameter | 3.61 mm |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | TiCN|Al2O3|TiN |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.008
