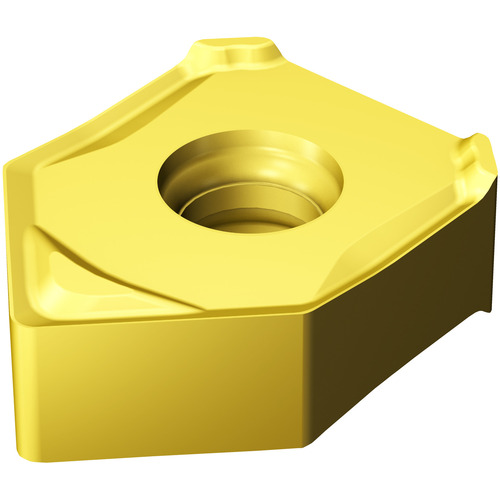

345N1305EKW8 K20W Insert
Milling Insert; 8.8 mm Length × 5.05 mm Thickness ; K20W ; Carbide ; | Al2O3 | TiN | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Grade | K20W |
| Cutting Edge Length (L) | 8.8 mm | Shape | Square |
| Corner Radius (RE) | 1 mm | Insert Style | 345N-1305E-KW8 |
| Inscribed Circle Diameter (IC) | 13 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 5.05 mm | Chip Breaker Type | KW8 |
| Insert Included Angle (EPSR) | 45 Degrees | Hole Diameter | 4.8 mm |
| Coating | | Al2O3 | TiN | TiCN | | Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
.304
