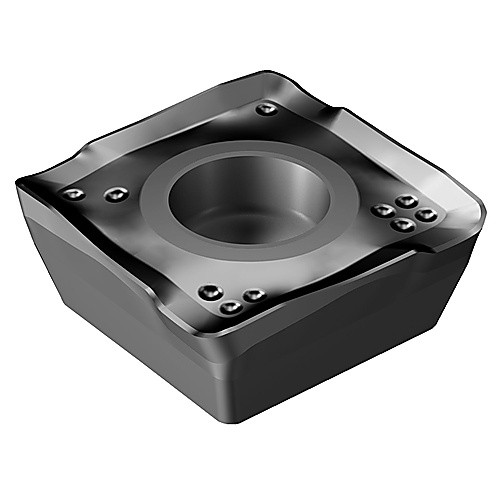

490R140408MPH 3040
Milling Insert; 10.3 mm Length × 3.9 mm Thickness ; 3040 ; Carbide ; | Al2O3 | TiC |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | | Grade | 3040 |
| Cutting Edge Length (L) | 10.3 mm | Shape | Square |
| Corner Radius (RE) | 0.8 mm | Insert Style | 490R-140408M-PH |
| Inscribed Circle Diameter (IC) | 13.8 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 3.9 mm | Chip Breaker Type | PH |
| Insert Included Angle (EPSR) | 90 Degrees | Hole Diameter | 4.1 mm |
| Coating | | Al2O3 | TiC | | Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.203
