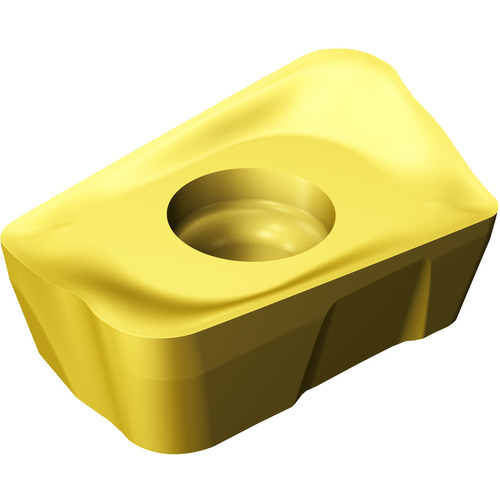

R390180616HKTW 1020 Insert
Milling Insert; 15.4 mm Length × 11 mm Width × 6.33 mm Thickness ; 1020 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | 1020 |
| Cutting Edge Length (L) | 15.4 mm | Shape | Rectangle |
| Corner Radius (RE) | 1.6 mm | Insert Style | R390.18 06 16HK-TW |
| Insert Width (W1) | 11 mm | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 18 mm | Chip Breaker Type | KTW |
| Insert Thickness (S) | 6.33 mm | Hole Diameter | 4.15 mm |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
| Coating | TiAlN |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.317
