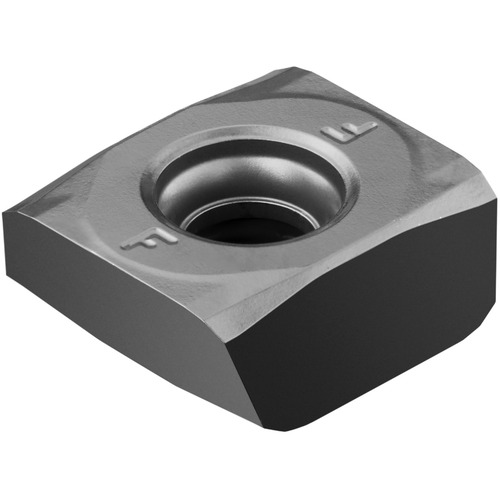

N26081204L HM Auto Milling Insert
Milling Insert; N26081204L HM HM 1 mm Length × 4.763 mm Width × 12.7 mm Thickness ; Carbide ; Uncoated
| Applicable Material | | Cast Iron | | Grade | HM |
| Cutting Edge Length (L) | 1 mm | Shape | Square |
| Corner Radius (RE) | 1.8 mm | Insert Style | N260.8-1204-L |
| Insert Width (W1) | 4.763 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | L |
| Insert Thickness (S) | 12.7 mm | Hole Diameter | 4.39 mm |
| Insert Included Angle (EPSR) | 15 Degrees | Cutting Edge Material | Carbide |
| Coating | Uncoated |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.166
