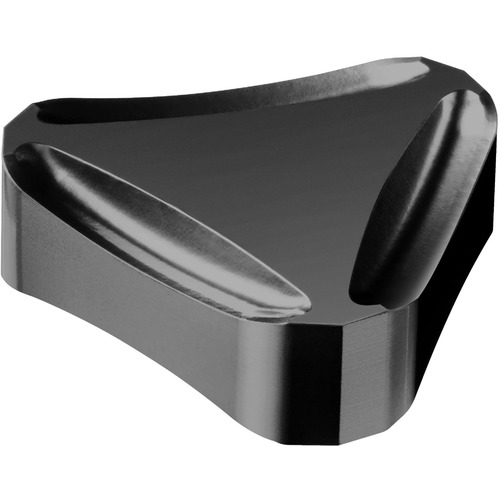

TNEF1204ANCA 3020 Auto Milling Insert
Milling Insert; 12 mm Length × 4.763 mm Thickness ; 3020 ; Carbide ; | Al2O3 | TiC |
| Applicable Material | | Steel | Cast Iron | | Coating | | Al2O3 | TiC | |
| Cutting Edge Length (L) | 12 mm | Grade | 3020 |
| Corner Radius (RE) | 3 mm | Insert Style | TNEF 12 04 AN-CA |
| Inscribed Circle Diameter (IC) | 12.7 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.763 mm | Chip Breaker Type | CA |
| Insert Included Angle (EPSR) | 45 Degrees | Cutting Edge Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.289
