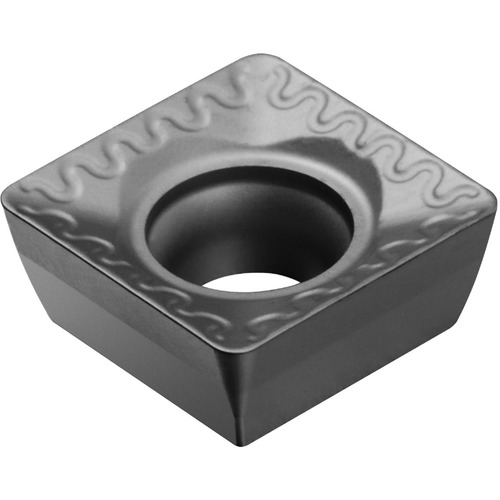

SPMT09T308WL H13A U-Max Milling Insert
Milling Insert; SPMT09T308WL H13A H13A × 3.969 mm Thickness ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Shape | Square |
| Corner Radius (RE) | 0.8 mm | Insert Style | SPMT 09 T3 08-WL |
| Inscribed Circle Diameter (IC) | 9 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3.969 mm | Chip Breaker Type | WL |
| Insert Included Angle (EPSR) | 90 Degrees | Hole Diameter | 3.969 mm |
| Coating | Uncoated | Cutting Edge Material | Carbide |
| Grade | H13A |
Product Features
| Country of Origin | JAPAN |
Shipping Info
Package Weight
.090
