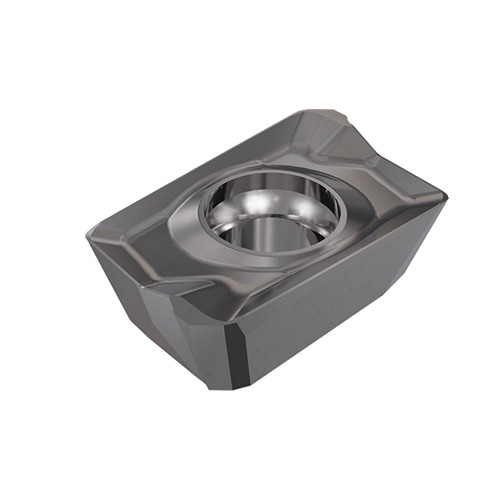

ADKT 1505ADR-HM IC328
Milling Insert; 0.63″ Length × 0.377″ Width × 0.217″ Thickness ; IC328 ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | 85° Parallelogram |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |

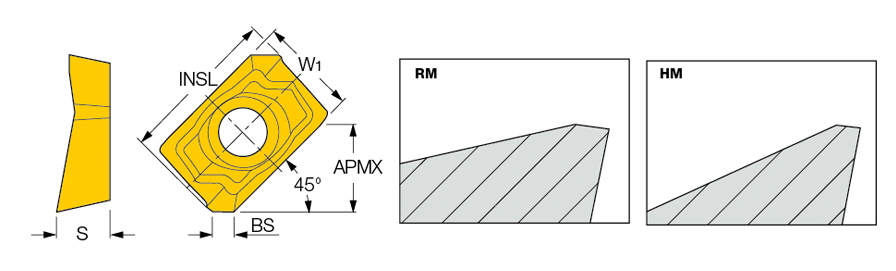

| Cutting Edge Length (L) | 0.63″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.63″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.3346″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.377″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.217″ | Number of Cutting Edges | 2 |
| Wiper Edge Length (BS) | 0.063″ | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC328 |
Product Features
| Family Description | HELIMILL milling inserts for general use. The -RM insert has a reinforced cutting edge for heavy machining applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.016
