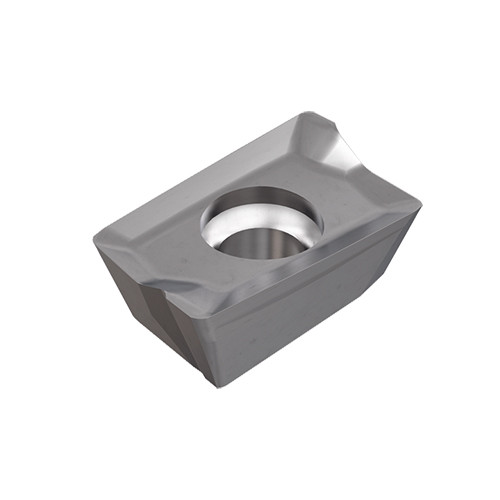

ADCR 1505PDFR IC928
Milling Insert; 0.628″ Length × 0.374″ Width × 0.222″ Thickness ; IC928 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | 85° Parallelogram |
| Application | | Counter Boring | Countersinking | Facing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |

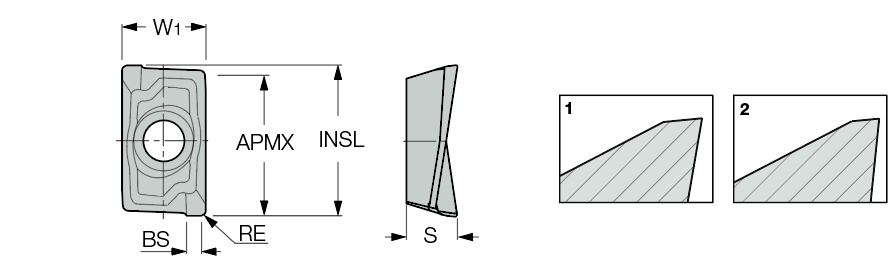

| Cutting Edge Length (L) | 0.628″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.628″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.472″ | Figure | 1 |
| Insert Width (W1) | 0.374″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.222″ | Number of Cutting Edges | 2 |
| Wiper Edge Length (BS) | 0.063″ | Cutting Edge Effective Length (LE) | 0.571″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC928 | Body Material | Carbide |
Product Features
| Family Description | HELIMILL, super positive inserts with polished rake for machining aluminum and high temp alloys. P=peripherally ground with a polished rake | Country of Origin | Israel |
Shipping Info
Package Weight
0.016
