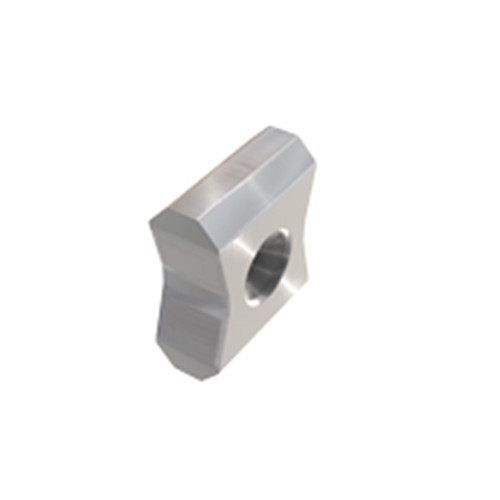

LNMW 150608 ANTN IC910
Milling Insert; LNMW150608 ANTN IC910 IC910 × 0.236″ Width × 0.508″ Thickness ; Carbide ; AlTiN
| Applicable Material | | Steel | Cast Iron | | Grade | IC910 |
| Application | | Facing | Slanted Shoulder & Chamfer | | Shape | Rectangle |

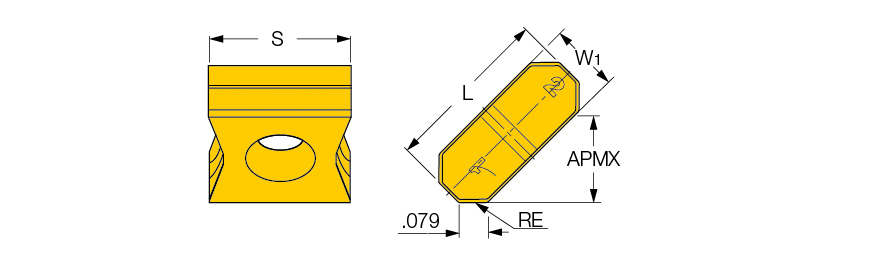

| Insert Length (INSL) | 0.602″ | Maximum Feed per Tooth (fz(max)) | 0.0157 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.295″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0118 ″/tooth |
| Insert Thickness (S) | 0.508″ | Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 0.079″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | AlTiN |
Product Features
| Family Description | TANGMILL, tangentially clamped insert with a reinforced negative molded rake. Used for unfavorable and high feed cutting conditions. Available are 4 R.H. and 4 L.H. cutting edges when used on F45LN.. cutters. | Country of Origin | Israel |
Shipping Info
Package Weight
0.031
