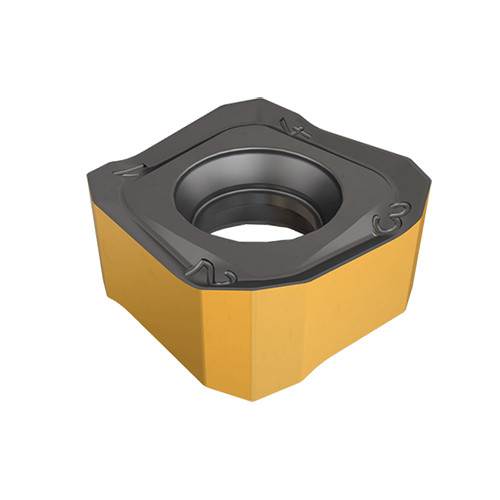

S865 SNMU 1305ZNTR IC5100
Milling Insert; S865SNMU1305ZNTR IC5100 × 0.217″ Thickness ; Carbide ; TiCN+Al2O3

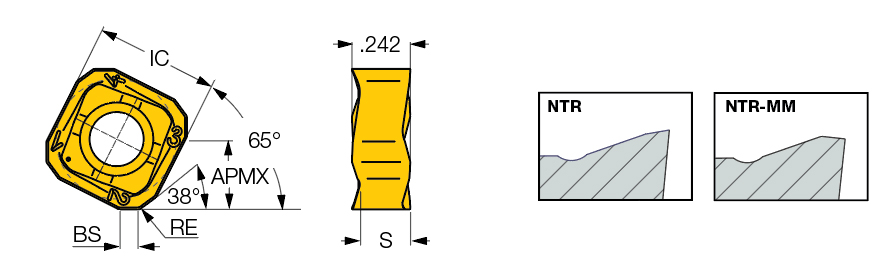

| Applicable Material | | Cast Iron | | Grade | IC5100 |
| Application | | Facing | Slanted Shoulder & Chamfer | | Shape | Square |
| Insert Length (INSL) | 0.512″ | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Corner Radius (RE) | 0.0197″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.315″ | Tool Type | Double sided Inserts |
| Inscribed Circle Diameter (IC) | 0.512″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.217″ | Number of Cutting Edges | 8 |
| Wiper Edge Length (BS) | 0.079″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | TiCN+Al2O3 |
Product Features
| Family Description | Double-sided square inserts with 8 cutting edges. Used on 65° face mills (HELIDO 865 line). | Country of Origin | Israel |
| Remarks | Recommended ap max on steel applications with coarse pitch cutters and cast iron with fine pitch cutters may be increased by up to .315 |
Shipping Info
Package Weight
0.022
