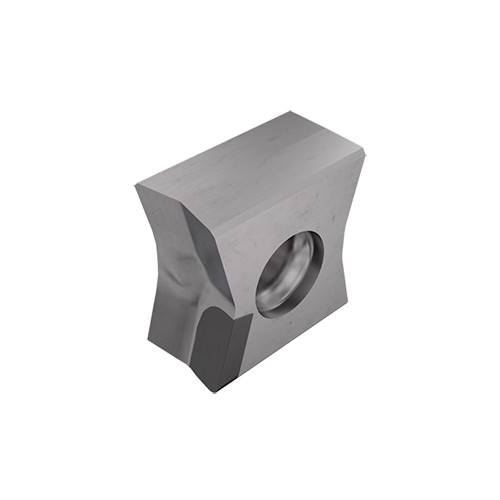

LNAW 1106PN-R-S IB85
Milling Insert; LNAW1106PNRSIB85 TURNING IB85 × 0.236″ Width × 0.469″ Thickness ; PCBN ; Uncoated
| Applicable Material | | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IB85 |
| Application | | Facing | Shouldering | | Shape | Rectangle |

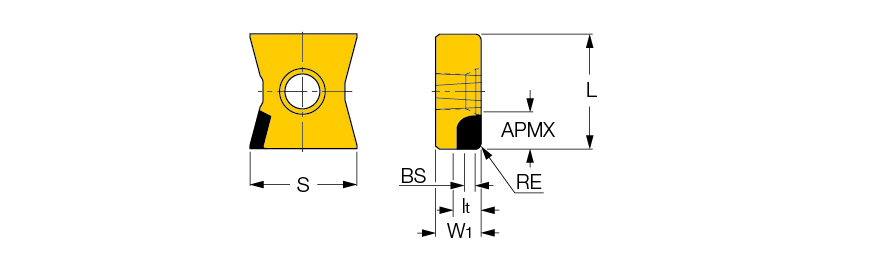

| Insert Length (INSL) | 0.44″ | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.197″ | Cutting Edge Material | PCBN |
| Insert Width (W1) | 0.236″ | Tool Type | Turn Ultra hard Inserts |
| Insert Thickness (S) | 0.469″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Wiper Edge Length (BS) | 0.047″ | Number of Cutting Edges | 1 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | TANGMILL inserts with a PCBN brazed tip. Use on F90LN milling cutters for machining hardened and cast steel with over 45 HRc, grey and nodular cast iron, powder compacted and sintered metals and heat resistant alloys. | Country of Origin | Italy |
| Remarks | The LNAW PN-R.. is .0012 edge-honed for finishing applications, while the LNAW PNTR... has a chamfered edge for rough milling applications For D.O.C. and machining recommendations, click on More Info |
Shipping Info
Package Weight
0.032
