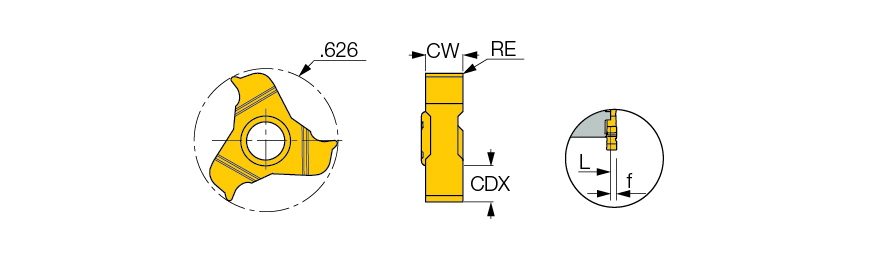

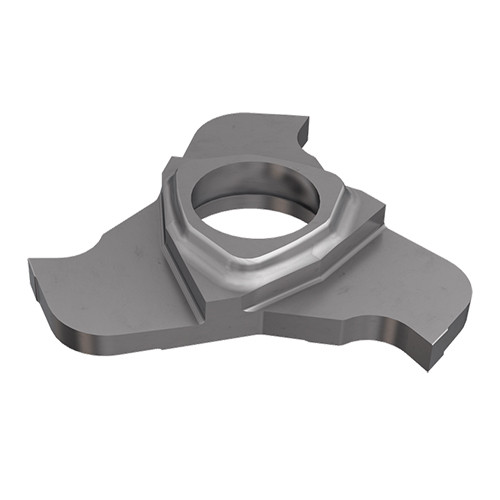

TRI 16RK-2.0-0.2 IC908
Milling Insert; TRI 16RK-2.0-0.2 IC908 IC908 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Application | | Bottom Shouldering | Internal Groove Milling | Shouldering | Side Slotting | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0079″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.626″ | Minimum Feed per Tooth (fz(min)) | 0.0016 ″/tooth |
| Cutting Depth Maximum (CDX) | 0.189″ | Number of Cutting Edges | 3 |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Shape | Round |
Product Features
| Family Description | Triple-edged groove milling inserts. | Country of Origin | Israel |
| Remarks | Inserts in width range of .236 to .256 can be supplied on request For L dimension, refer to the tool's data |
Shipping Info
Package Weight
0.008
