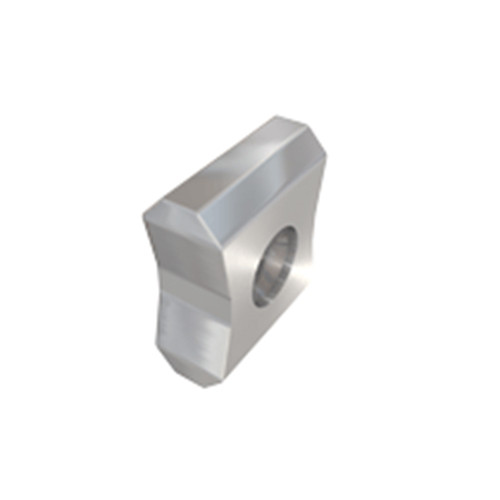

LNHW 1506 ANTN IS8
Milling Insert; LNHW1506 ANTN IS8 IS8 × 0.236″ Width × 0.508″ Thickness ; Ceramic ; Uncoated
| Applicable Material | | Cast Iron | Super-Alloys / Titanium | | Grade | IS8 |
| Application | | Facing | Slanted Shoulder & Chamfer | | Shape | Rectangle |

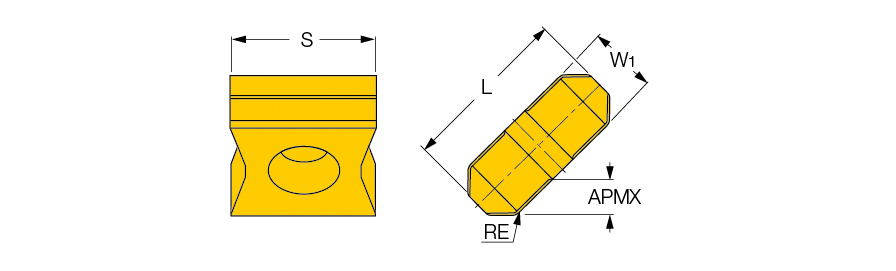

| Insert Length (INSL) | 0.602″ | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Ceramic |
| Depth of Cut Maximum (APMX) | 0.118″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.508″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | TANGMILL, Tangentially clamped ceramic inserts, designed for accurate high speed machining of grey and nodular cast iron. Provide high surface finish. Feature 4 R.H. and 4 L.H. cutting edges when used on F45LN.. cutters. | Country of Origin | Israel |
| Remarks | Provides high surface finish Feature 4 R.H. and 4 L.H. cutting edges when used on F45LN.. cutters Important: Tightening torque 31-35 lbf x in |
Shipping Info
Package Weight
0.009
