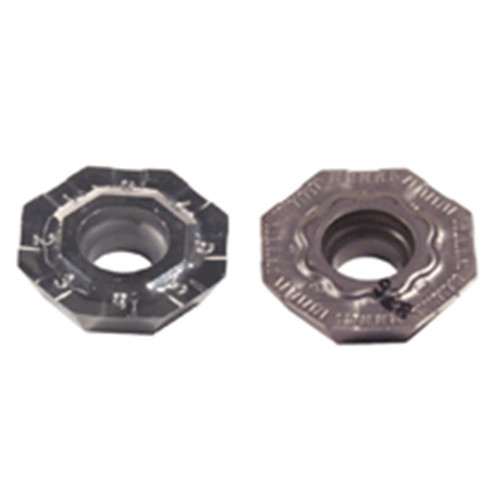

OFCR 07T3-AEN IC928
Milling Insert; OFCR07T3-AEN IC928 IC928 × 0.171″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC928 |
| Application | | Facing | Helical Interpolation | Rampdown | Slanted Shoulder & Chamfer | | Shape | 135° Octagon |

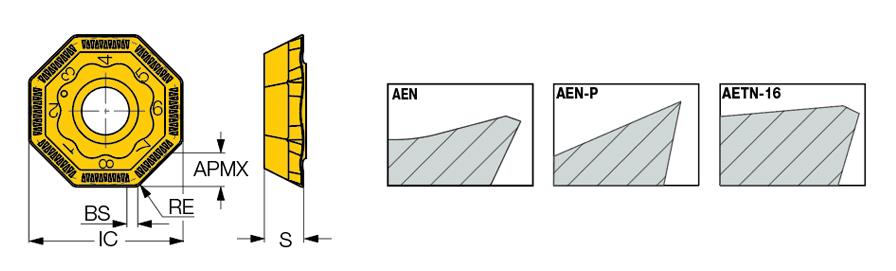

| Insert Length (INSL) | 0.288″ | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Corner Radius (RE) | 0.0236″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.181″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Inscribed Circle Diameter (IC) | 0.701″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.171″ | Number of Cutting Edges | 8 |
| Wiper Edge Length (BS) | 0.063″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 135 Degrees | Body Material | Carbide |
| Coating | TiAlN |
Product Features
| Family Description | HELIOCTO octagonal milling inserts. The -16 type is used for hardened and mold steel and the -P type has a super positive shear angle for machining aluminum and titanium. | Country of Origin | Israel |
Shipping Info
Package Weight
0.028
