CR D500-MT IC328

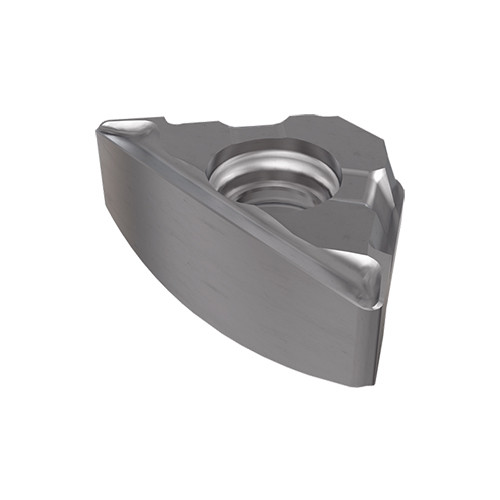

Milling Insert; CR D500-MT IC328 IC328 × 15.97 mm Width × 5.66 mm Thickness ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Special |
| Application | | Profiling | | Cutting Edge Material | Carbide |

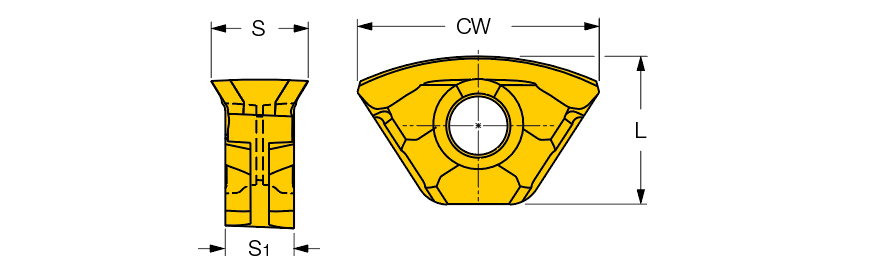

| Insert Length (INSL) | 9.26 mm | Tool Type | Double sided Inserts |
| Insert Width (W1) | 15.97 mm | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 5.66 mm | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC328 |
Product Features
| Family Description | 30-50 mm diameters ball nose profiling inserts. | Country of Origin | Israel |
| Remarks | Rg = Generated radius on workpiece. |
Shipping Info
Package Weight
0.013
