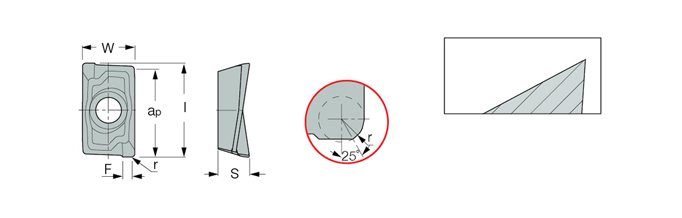

APKR 1604PDR-HM
Milling Insert; 17.58 mm Length × 9.45 mm Width × 5.7 mm Thickness ; IC28 ; Carbide ; Uncoated
| Applicable Material | Steel|Stainless Steel|Non-Ferrous Metals|Hi-Temp Alloys | Grade | IC28 |
| Application | | Facing | Milling Inserts | Profiling | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 17.58 mm | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Corner Radius (RE) | 0.8 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 15.54 mm | Tool Type | Mill AL, HTA Geometric Inserts |
| Insert Width (W1) | 9.45 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Insert Thickness (S) | 5.7 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 1.72 mm | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | 16 mm super positive inserts, for aluminum, stainless steel and high temperature alloys. | Country of Origin | Israel |
Shipping Info
Package Weight
0.017
