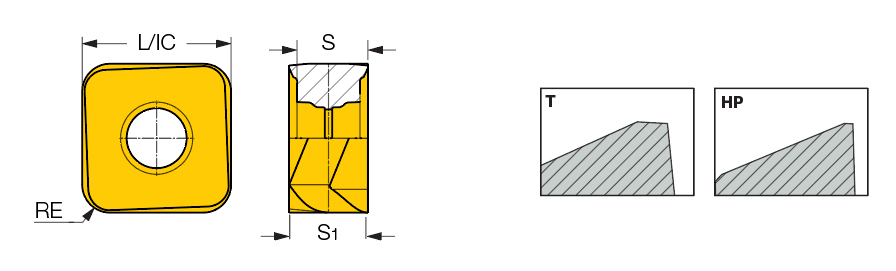

FFQ8 SZMU 120520T IC808
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | Round |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Maximum Feed per Tooth (fz(max)) | 0.059 ″/tooth |
| Cutting Edge Length (L) | 0.472″ | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 0.472″ | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.0787″ | Minimum Feed per Tooth (fz(min)) | 0.0157 ″/tooth |
| Inscribed Circle Diameter (IC) | 0.472″ | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 0.23″ | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 |
Product Features
| Family Description | Double-sided square inserts with 8 cutting edges for high feed milling | Country of Origin | Israel |
| Remarks | For side plunging, the initial cutting feed is .004 inch/t T- for steel, ferritic and martensitic stainless steel, cast iron and hardened steel HP - for austenitic stainless steel and high temperature alloys For cutting conditions click on More info |
Shipping Info
Package Weight
0.024
