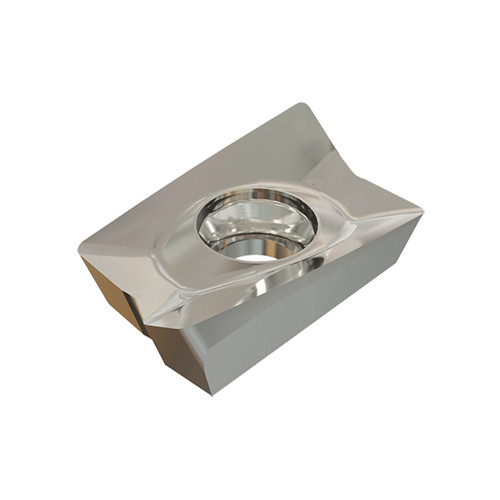

HM90 APCR 100304PDFR-P IC08
Milling Insert; 0.443″ Length × 0.257″ Width × 0.152″ Thickness ; IC08 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shape | 85° Parallelogram |
| Application | | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Cutting Edge Length (L) | 0.443″ | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 0.443″ | Tool Type | Mill AL, HTA Geometric Inserts |

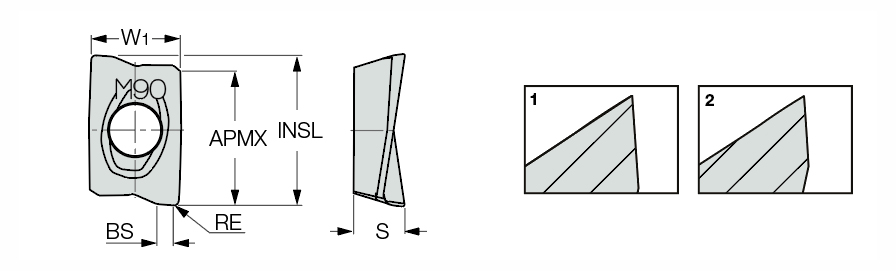

| Corner Radius (RE) | 0.0157″ | Figure | 1 |
| Depth of Cut Maximum (APMX) | 0.386″ | Minimum Feed per Tooth (fz(min)) | 0.0027 ″/tooth |
| Insert Width (W1) | 0.257″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.152″ | Cutting Edge Effective Length (LE) | 0.401″ |
| Wiper Edge Length (BS) | 0.06″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC08 |
Product Features
| Family Description | Inserts with sharp cutting edge and polished rake face for ISO N applications (for machining non-ferrous materials) | Country of Origin | Israel |

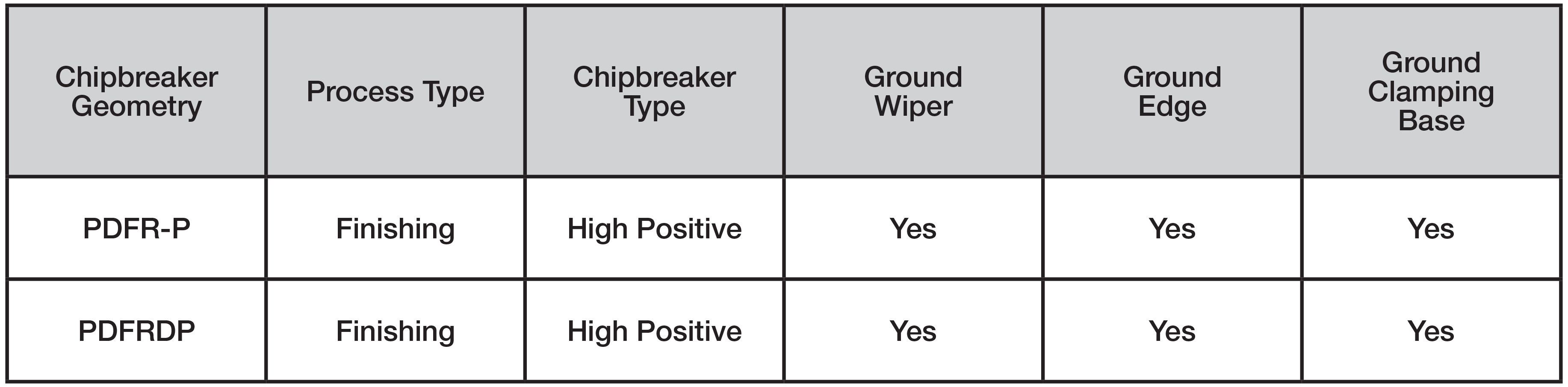

| Remarks | Super positive peripherally ground chipformer P - Polished rake DP- Polished rake and flank Used for machining aluminum (fz .0028-.0098), titanium (fz .0020-.0031) and magnesium (fz .0020-.0039) Recommended for coarse pitch cutters |
Shipping Info
Package Weight
0.006
