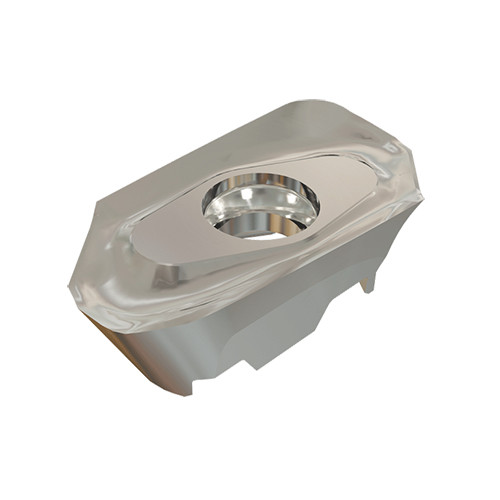

HM90 AXCR 150530R-P IC28
Milling Insert; 0.756″ Length × 0.394″ Width × 0.197″ Thickness ; IC28 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shape | 85° Parallelogram |
| Application | | Facing | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |

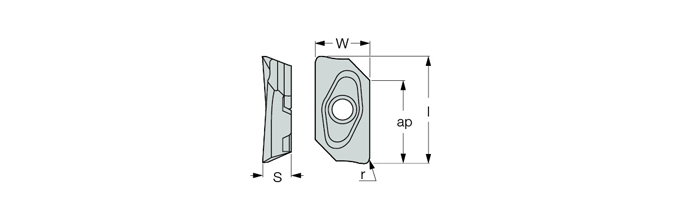

| Cutting Edge Length (L) | 0.756″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.756″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.1181″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.551″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Width (W1) | 0.394″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.197″ | Cutting Edge Effective Length (LE) | 0.551″ |
| Wiper Edge Length (BS) | 0.061″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC28 |
Product Features
| Family Description | HELIALU super positive inserts with a polished rake, for machining aluminum. | Country of Origin | Israel |
Shipping Info
Package Weight
0.015
