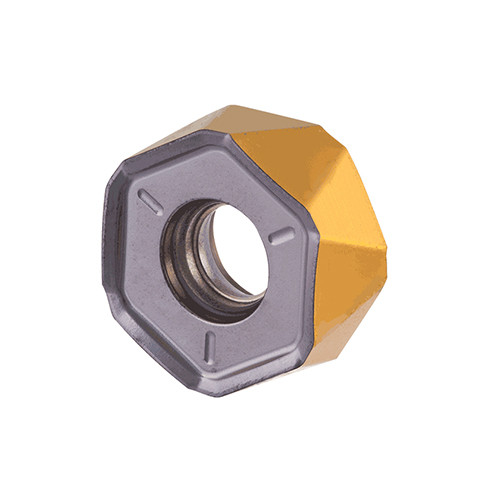

H1200 HXCU 0606-TR IC810
Milling Insert; H1200 HXCU 0606-TR IC810 IC810 × 0.281″ Thickness ; Carbide ; AlTiCrN+TiN
| Applicable Material | | Steel | Cast Iron | | Grade | IC810 |
| Application | | Facing | Fast Feed Milling | Slanted Shoulder & Chamfer | | Shape | 120° Hexagon |

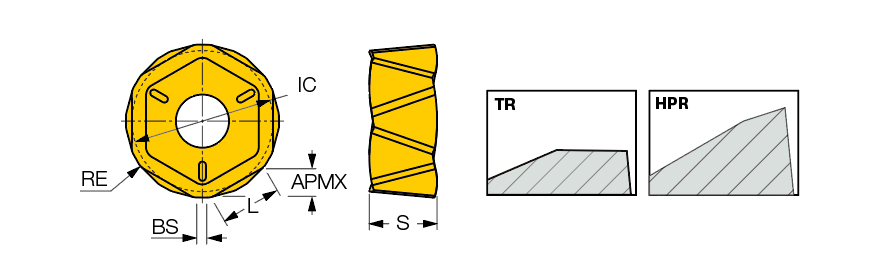

| Insert Length (INSL) | 0.253″ | Maximum Feed per Tooth (fz(max)) | 0.0256 ″/tooth |
| Corner Radius (RE) | 0.063″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.118″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.586″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.281″ | Minimum Feed per Tooth (fz(min)) | 0.0098 ″/tooth |
| Wiper Edge Length (BS) | 0.042″ | Number of Cutting Edges | 12 |
| Insert Included Angle (EPSR) | 120 Degrees | Measurement Type | Inch |
| Coating | AlTiCrN+TiN | Body Material | Carbide |
Product Features
| Family Description | Double-sided hexagonal inserts with 12 cutting edges. | Country of Origin | Israel |
| Remarks | TR-for steel and cast iron, HPR-for stainless steel and high temperature alloys |
Shipping Info
Package Weight
0.037
