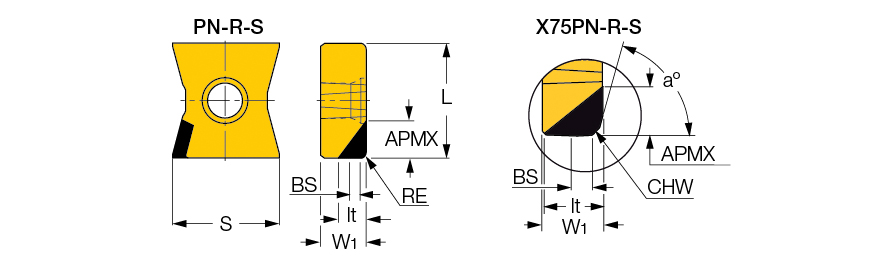

LNAW 150620X75PNTR-S IB85
| Applicable Material | Cast Iron|Hard Materials|Hi-Temp Alloys | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 7.94 mm | Corner Chamfer Width (CHW) | 0.031″ |
| Insert Width (W1) | 0.236″ | Cutting Edge Material | PCBN |
| Insert Thickness (S) | 5.2 mm | Tool Type | Mill Ultra hard Inserts |
| Wiper Edge Length (BS) | 0.059″ | Minimum Feed per Tooth (fz(min)) | 0.0039 inch/tooth |
| Coating | Uncoated | Measurement Type | Metric |
| Grade | 5605601 | Body Material | Carbide |
Product Features
| Family Description | TANGMILL inserts with a PCBN brazed tip. Use on F90LN milling cutters for machining hardened and cast steel with over 45 HRc, grey and nodular cast iron, powder compacted and sintered metals and heat resistant alloys. | Country of Origin | IL |

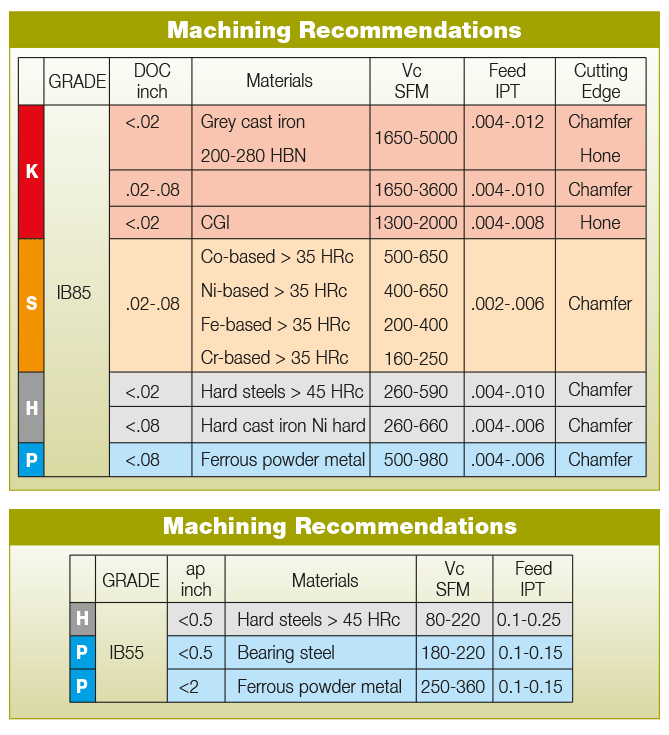

| Remarks | The LNAW PN-R.. is .0012″ edge-honed for finishing applications, while the LNAW PNTR... has a chamfered edge for rough milling applications For D.O.C. and machining recommendations, click on "More Info" |
Shipping Info
Package Weight
.0110
