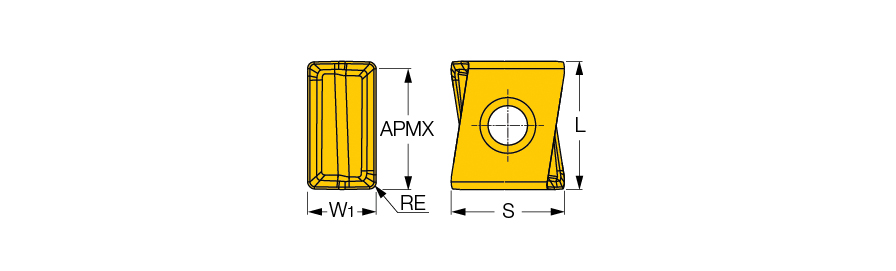

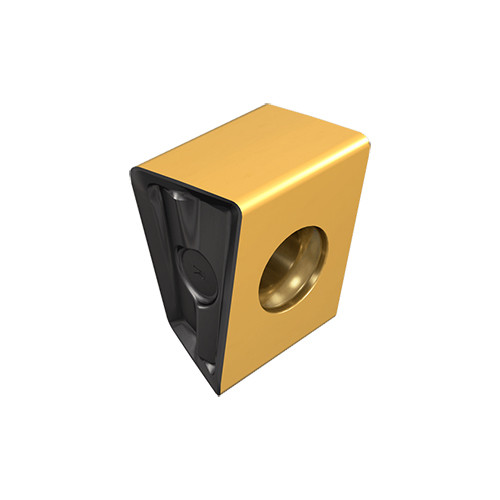

T490 LNHT 2212-PNTR IC330
Milling Insert; T490LNHT2212-PNTR IC330 × 0.472″ Width × 0.78″ Thickness ; Carbide ; TiCN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Rectangle |
| Application | | Facing | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0138 ″/tooth |
| Insert Length (INSL) | 0.882″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0472″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.827″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.472″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.78″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC330 |
Product Features
| Family Description | HELITANG - Tangentially clamped insert with 4 helical cutting edges. | Country of Origin | Israel |
| Remarks | LNMT-utility inserts, LNHT-precision inserts |
Shipping Info
Package Weight
0.119
