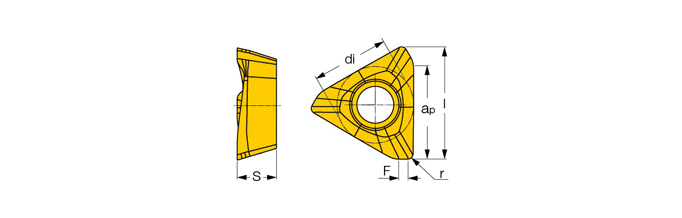

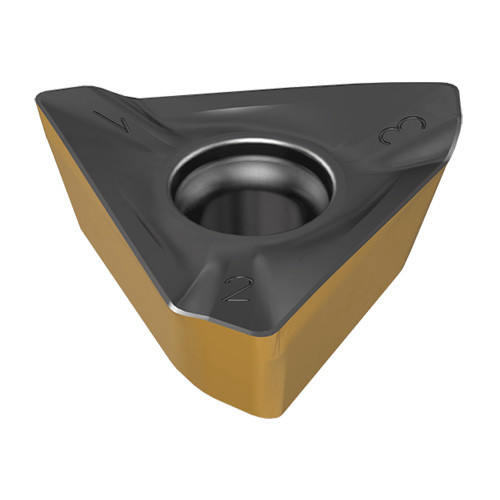

HM390 TDKT 1907PDTR IC330
Milling Insert; HM390 TDKT 1907PDTR IC330 IC330 × 0.276″ Thickness ; Carbide ; TiCN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Triangle |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Insert Length (INSL) | 0.827″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.63″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.276″ | Number of Cutting Edges | 3 |
| Insert Included Angle (EPSR) | 60 Degrees | Cutting Edge Effective Length (LE) | 0.63″ |
| Coating | TiCN+TiN | Measurement Type | Inch |
| Grade | IC330 | Body Material | Carbide |
Product Features
| Family Description | Triangular inserts with 3 helical cutting edges for 90° shoulder accuracy. For general use applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.043
