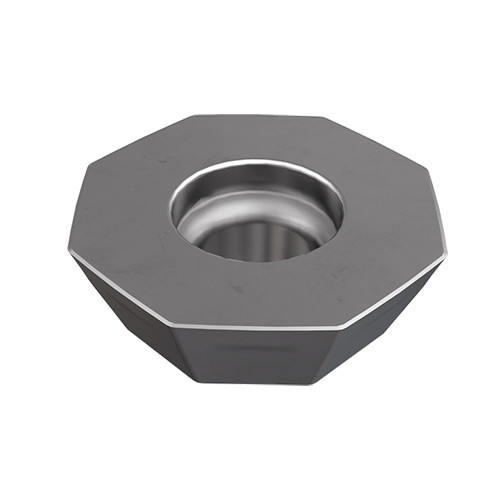

OEMW 060405-AETN IC808
Milling Insert; OEMW060405-AETN IC808 IC808 × 0.187″ Thickness ; Carbide ; TiAlN+AlTiN+TiN

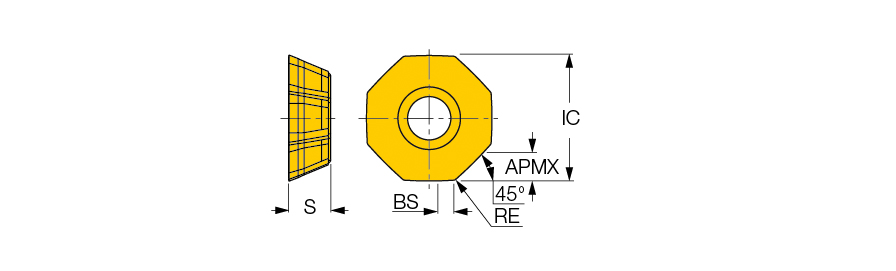

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC808 |
| Application | | Facing | Slanted Shoulder & Chamfer | | Shape | 135° Octagon |
| Corner Radius (RE) | 0.0197″ | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.096″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.562″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.187″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Wiper Edge Length (BS) | 0.041″ | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
Product Features
| Family Description | HELIOCTO Octagonal, flat rake inserts, used for machining cast iron. | Country of Origin | Israel |
Shipping Info
Package Weight
0.019
