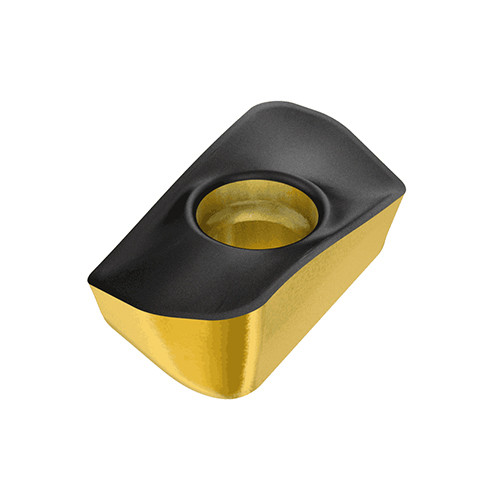

HP ANKT 0702R12T-FF IC830
Milling Insert; 0.337″ Length × 0.173″ Width × 0.102″ Thickness ; IC830 ; Carbide ; AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | 85° Parallelogram |
| Application | | Facing | Fast Feed Milling | Rampdown | | Maximum Feed per Tooth (fz(max)) | 0.0394 ″/tooth |

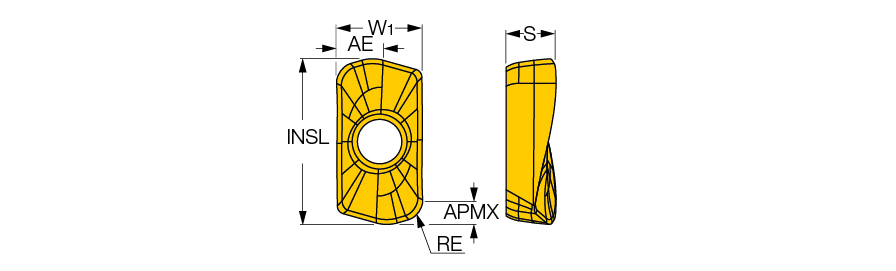

| Cutting Edge Length (L) | 0.337″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.337″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0472″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.028″ | Minimum Feed per Tooth (fz(min)) | 0.0118 ″/tooth |
| Insert Width (W1) | 0.173″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.102″ | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 |
Product Features
| Family Description | HELIPLUS inserts for fast feed milling. | Country of Origin | Israel |
| Remarks | Can be used on .500 and larger tools |
Shipping Info
Package Weight
0.005
