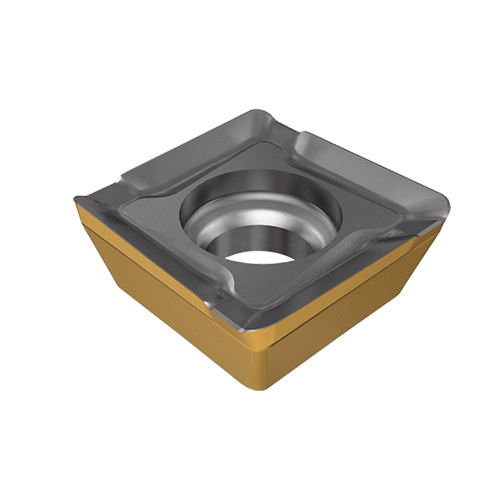

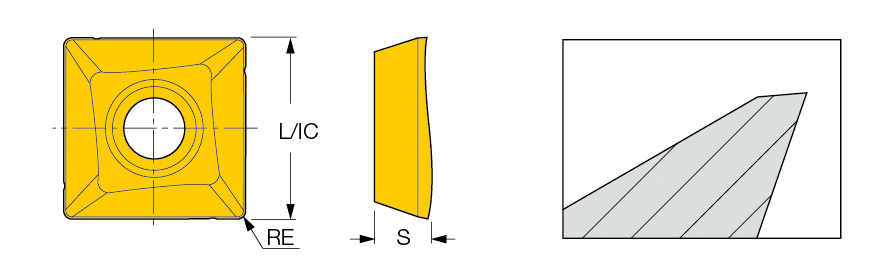

SDMR 1205PDR-HQ-M IC328
Milling Insert; SDMR1205PDRHQM IC328 IC328 × 0.201″ Thickness ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Square |
| Application | | Facing | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |
| Insert Length (INSL) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0394″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Insert Thickness (S) | 0.201″ | Minimum Feed per Tooth (fz(min)) | 0.0027 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 4 |
| Coating | TiCN | Measurement Type | Inch |
| Grade | IC328 | Body Material | Carbide |
Product Features
| Family Description | HELIQUAD, Super positive square insert for machining aluminum, stainless steel and high temperature alloys. | Country of Origin | Israel |
Shipping Info
Package Weight
0.017
