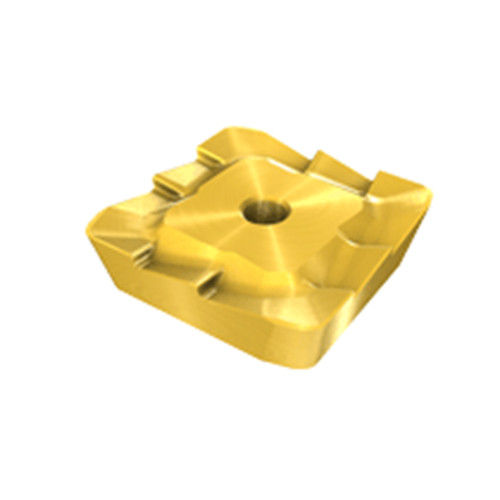

SEKR 43AFTR-HS IC328
Milling Insert; SEKR43AFTRHS IC328 IC328 × 0.187″ Thickness ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC328 |
| Application | | Facing | Plunging & Recessing | Slanted Shoulder & Chamfer | | Shape | Square |
| Insert Length (INSL) | 0.497″ | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.247″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.497″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.187″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Wiper Edge Length (BS) | 0.071″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
Product Features
| Family Description | Square milling inserts with chip splitting serrated cutting edge, used for 45° roughing applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.019
