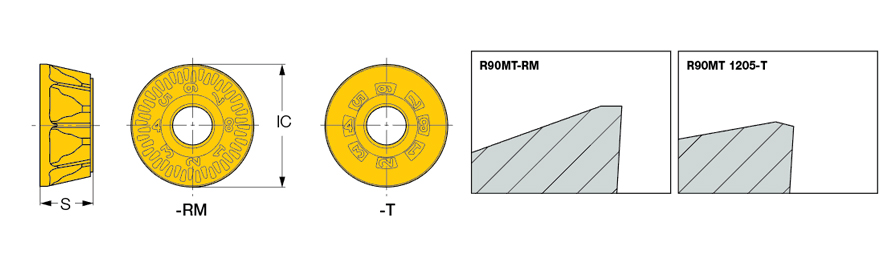

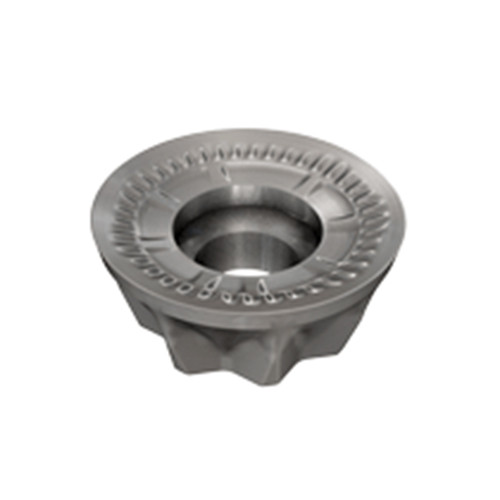

R90MT 1205-RM IC328
Milling Insert; R90MT1205RM IC328 IC328 × 0.197″ Thickness ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Application | | Bottom Shouldering | Facing | Profiling | Rampdown | Shouldering | Side Slotting | Slotting | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.2362″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.472″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.197″ | Number of Cutting Edges | 8 |
| Coating | TiCN | Measurement Type | Inch |
| Grade | IC328 | Body Material | Carbide |
| Shape | Round |
Product Features
| Family Description | CHAMMILL round profile milling inserts. Part of the CHAMELEON multi-functional line. | Country of Origin | Israel |
Shipping Info
Package Weight
0.011
