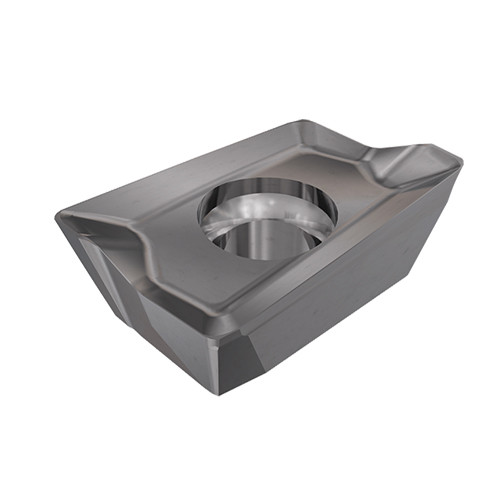

ADKR 150504PDR-HM IC328
Milling Insert; 0.642″ Length × 0.378″ Width × 0.222″ Thickness ; IC328 ; Carbide ; TiCN

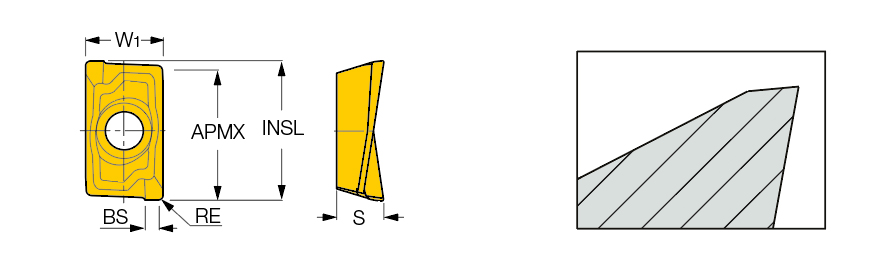

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | 85° Parallelogram |
| Application | | Bottom Shouldering | Counter Boring | Facing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Cutting Edge Length (L) | 0.642″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.642″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.4724″ | Minimum Feed per Tooth (fz(min)) | 0.0027 ″/tooth |
| Insert Width (W1) | 0.378″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.222″ | Cutting Edge Effective Length (LE) | 0.559″ |
| Wiper Edge Length (BS) | 0.063″ | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC328 |
Product Features
| Family Description | High Positive Inserts for Machining Steel, Stainless Steel and High Temperature Alloys | Country of Origin | Israel |
Shipping Info
Package Length
3.75000
Package Width
1.75000
Package Height
.50000
Package Weight
0.017
