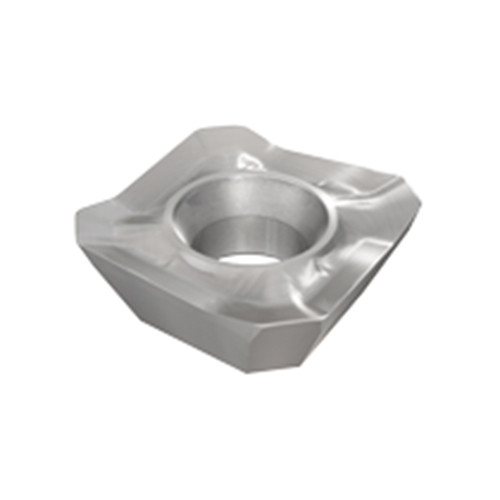

SEKT 43AFR-RM

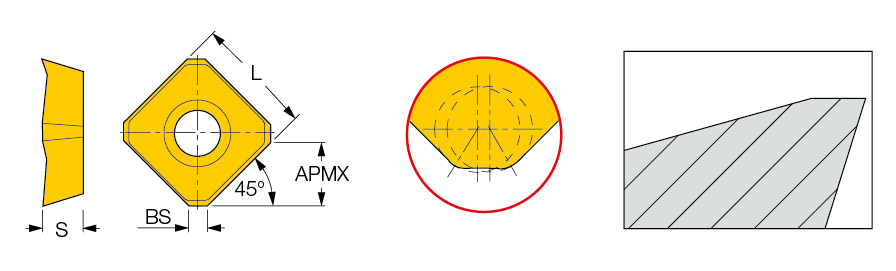

Milling Insert; 0.508″ Length × 0.203″ Thickness ; IC520M ; Carbide ; TiCN
| Applicable Material | Steel|Stainless Steel|Cast Iron | Grade | IC520M |
| Application | | Facing | Milling Inserts | Profiling | | Shape | Square |
| Cutting Edge Length (L) | 0.508″ | Maximum Feed per Tooth (fz(max)) | 0.0059 inch/tooth |
| Corner Radius (RE) | 7.94 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.252″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.203″ | Minimum Feed per Tooth (fz(min)) | 0.0039 inch/tooth |
| Wiper Edge Length (BS) | 0.085″ | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
Product Features
| Family Description | Super positive square milling inserts for 45° finishing andmedium machining of soft materials. | Country of Origin | Israel |
Shipping Info
Package Weight
0.016
