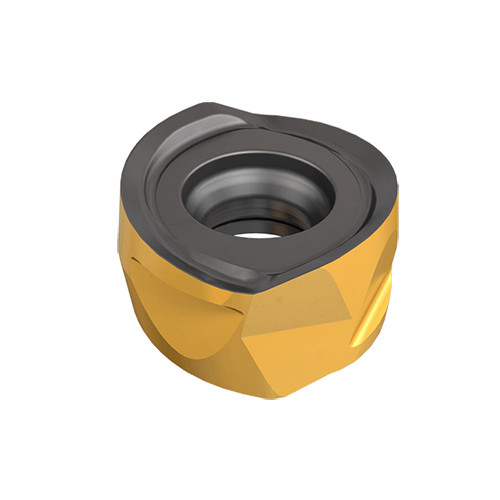

H400 RNHU 1205-AX IC808

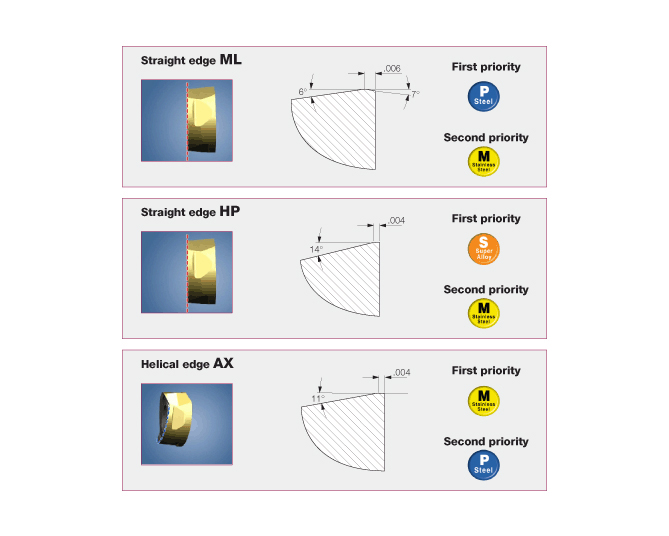

Double-sided inserts with four cutting edges for profile milling applications. Available are three different insert configurations for machining different materials and applications (HELIDO ROUND H400 LINE).
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | Round |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |

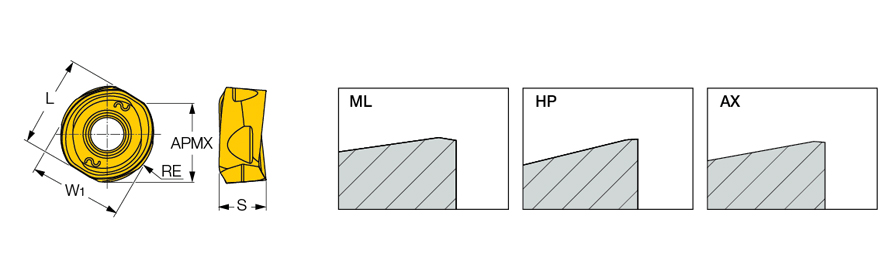

| Insert Length (INSL) | 0.433″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.2362″ | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.343″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Width (W1) | 0.441″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.205″ | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 |
Product Features
| Family Description | Double-sided inserts with four cutting edges for profile milling applications. Available are three different insert configurations for machining different materials and applications (HELIDO ROUND H400 LINE). | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
0.012
