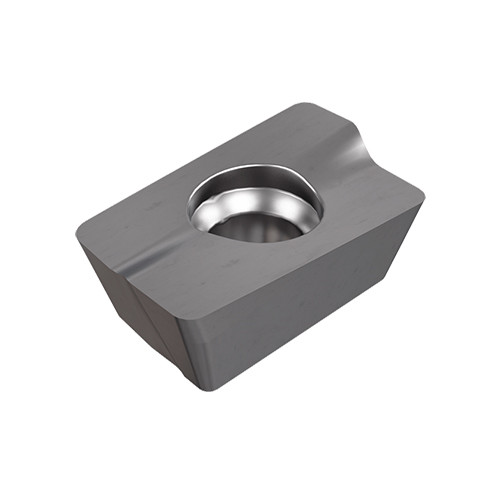

HM90 ADKW 1505PDR IC908
Milling Insert; 0.636″ Length × 0.378″ Width × 0.23″ Thickness ; IC908 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | 85° Parallelogram |
| Application | | Counter Boring | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |

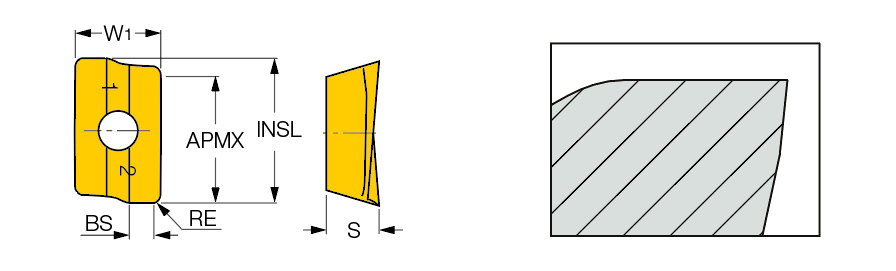

| Cutting Edge Length (L) | 0.636″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.636″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.472″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Width (W1) | 0.378″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.23″ | Cutting Edge Effective Length (LE) | 0.557″ |
| Wiper Edge Length (BS) | 0.096″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 |
Product Features
| Family Description | HELI2000 milling inserts, for unfavorable conditions and heavy interrupted cut on hardened steel. | Country of Origin | Israel |
| Remarks | Reinforced cutting edge, resistant to edge breakage and chipping Recommended for milling at unfavorable conditions and heavy interrupted cut Different corner radii can be ground |
Shipping Info
Package Weight
0.019
