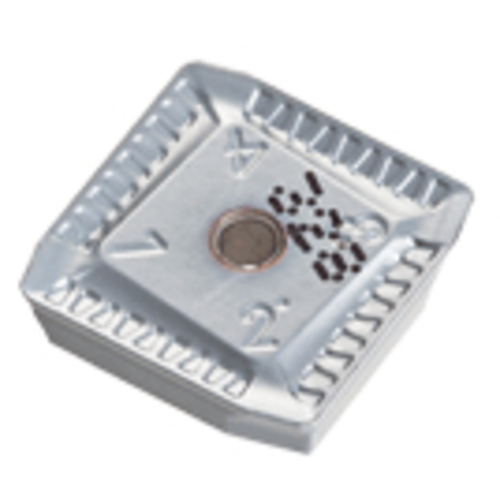

SPKR 42EDR-76 IC950
Milling Insert; SPKR42EDR-76 IC950 IC950 × 1/8″ Thickness ; Carbide
| Applicable Material | | Steel | Cast Iron | | Shape | Square |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |

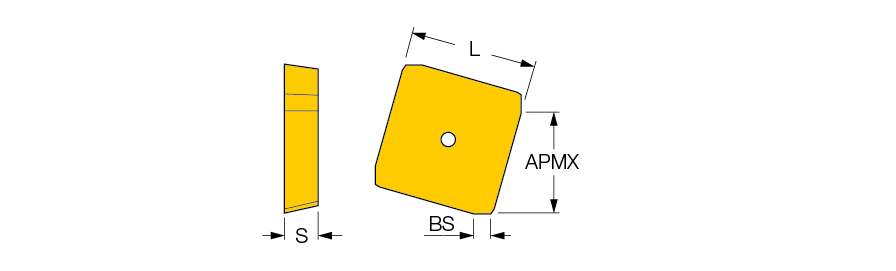

| Insert Length (INSL) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.374″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 1/8″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Wiper Edge Length (BS) | 0.071″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Grade | IC950 | Body Material | Carbide |
Product Features
| Family Description | Special chipbreaker for lower power consumption, longer tool life, reduces heat transfer. For alloy and stainless steel and for high temperature alloys. | Country of Origin | Israel |
Shipping Info
Package Weight
0.020
