APKT 1003PDTR-RM IC4100
| Applicable Material | | Cast Iron | Hard Materials | | Shape | 85° Parallelogram |
| Application | | Bottom Shouldering | Countersinking | Drill Mill | Facing | Milling Inserts | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Cutting Edge Length (L) | 0.433″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.433″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0197″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.315″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Width (W1) | 0.264″ | Cutting Edge Effective Length (LE) | 0.386″ |
| Insert Thickness (S) | 0.137″ | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC4100 |
Product Features

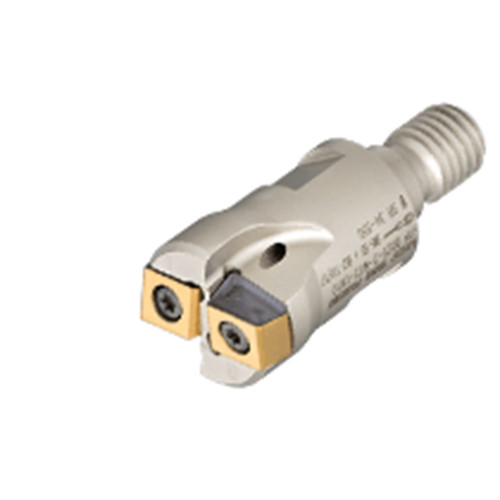

| Family Description | HELIMILL inserts with reinforced helical cutting edge for interrupted cut and heavy machining. | Country of Origin | Israel |
| Remarks | APKT...L should be used only on left-hand tools. |
Shipping Info
Package Weight
0.007
