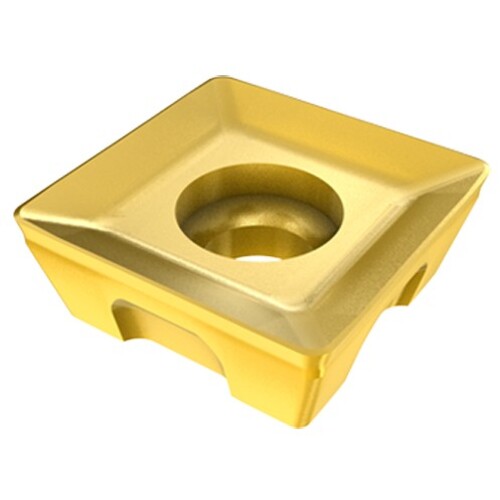

QDMT 1205PDTN-M IC950
Milling Insert; 1/2″ Length × 0.197″ Thickness ; IC950 ; Carbide ; TiCN
| Applicable Material | Steel|Cast Iron | Shape | Square |
| Application | | Facing | Milling Inserts | Profiling | | Maximum Feed per Tooth (fz(max)) | 0.0059 inch/tooth |
| Cutting Edge Length (L) | 1/2″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.031″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.197″ | Minimum Feed per Tooth (fz(min)) | 0.0031 inch/tooth |
| Coating | TiCN | Measurement Type | Metric |
| Grade | IC950 | Body Material | Carbide |
Product Features
| Family Description | QUAD2000 square, positive, inserts for general use, on right or left-hand tools. | Country of Origin | Israel |
| Remarks | Inserts with corner radii larger than .0315″ should be used only on the face of the SDK cutter. |
Shipping Info
Package Weight
0.015
