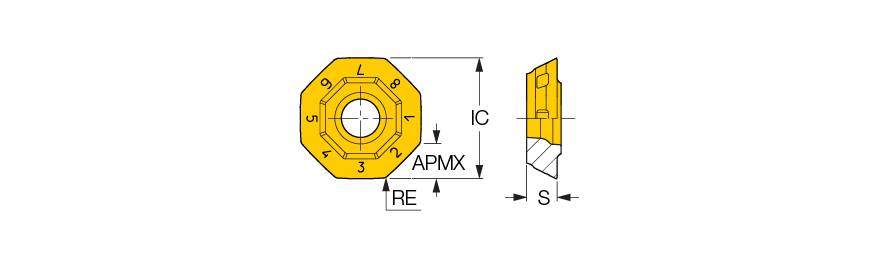

OFMW 07T3-AETN IC908

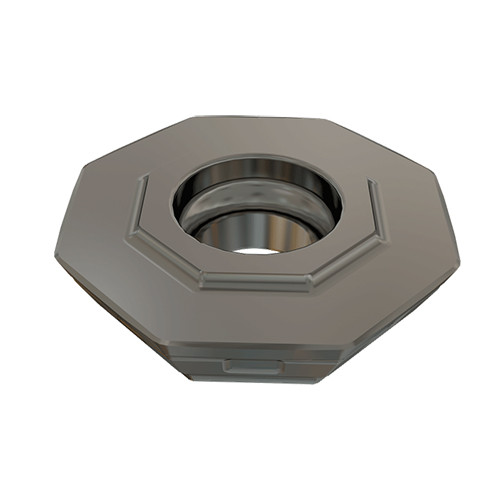

Milling Insert; OFMW07T3-AETN IC908 IC908 × 0.179″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | 135° Octagon |
| Application | | Facing | Helical Interpolation | Rampdown | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0138 ″/tooth |
| Corner Radius (RE) | 0.0394″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.157″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.711″ | Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Insert Thickness (S) | 0.179″ | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 |
Product Features
| Family Description | HELIOCTO octagonal milling inserts for heavy duty applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.032
