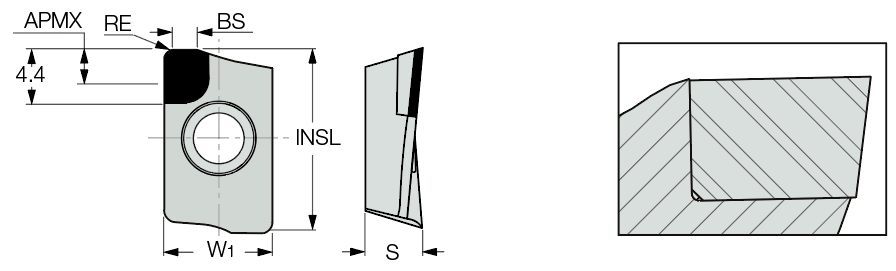

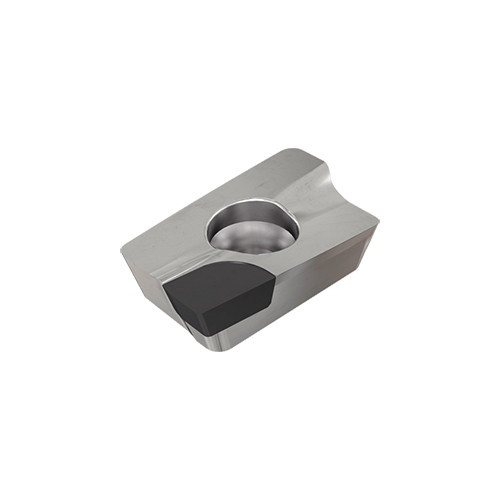

APKW 100304 PDR ID5
Milling Insert; 0.441″ Length × 0.266″ Width × 0.138″ Thickness ; ID5 ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shape | 85° Parallelogram |
| Application | | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Cutting Edge Length (L) | 0.441″ | Cutting Edge Material | PCD |
| Insert Length (INSL) | 0.452″ | Tool Type | Mill Ultra hard Inserts |
| Corner Radius (RE) | 0.0157″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.1378″ | Number of Cutting Edges | 1 |
| Insert Width (W1) | 0.266″ | Cutting Edge Effective Length (LE) | 0.079″ |
| Insert Thickness (S) | 0.138″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.06″ | Body Material | Carbide |
| Grade | ID5 |
Product Features
| Family Description | Single corner PCD tipped inserts for ISO N applications | Country of Origin | Italy |
| Remarks | For DOC and cutting speed recommendations, click on More Info Use ID5 for aluminum alloys with <12% silicon The inserts are supplied with spare screws Important: use only on tools with diameters of 1 and larger Using tools with diameter lower than 1 will result in opposite wiper and poor surface finish |
Shipping Info
Package Weight
0.023
