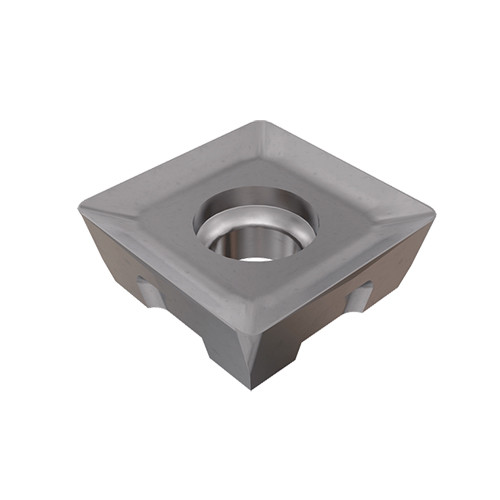

QDCT 120508-PDN-F IC328
Milling Insert; QDCT120508-PDN IC328 IC328 × 0.194″ Thickness ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Square |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |

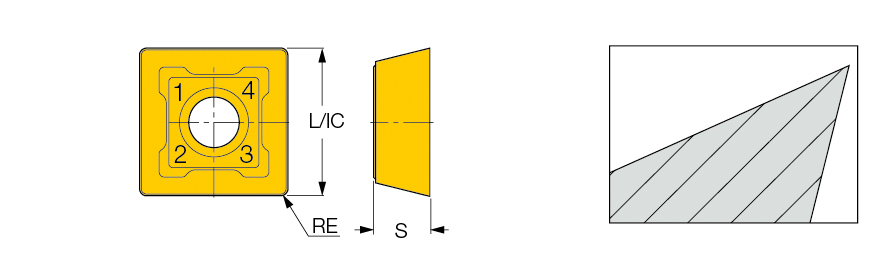

| Insert Length (INSL) | 1/2″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 1/2″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.194″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC328 |
Product Features
| Family Description | Precision Ground Neutral insert for General Use | Country of Origin | Israel |
| Remarks | Inserts with corner radii larger than 0.8 mm should be used only on the face of the SDK cutter. |
Shipping Info
Package Weight
0.017
