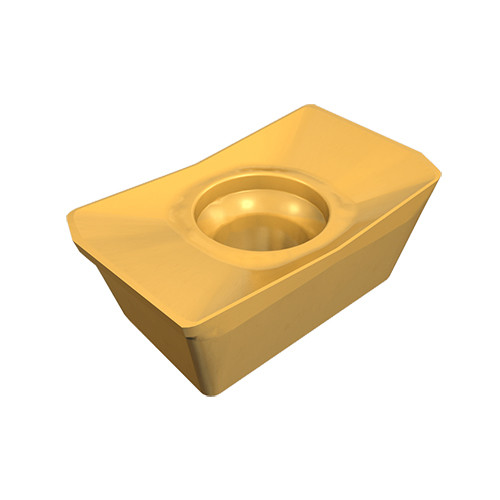

HM90 ADKT 1505PD-W IC908
Milling Insert; 0.659″ Length × 3/8″ Width × 0.23″ Thickness ; IC908 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC908 |
| Application | | Facing | | Shape | 85° Parallelogram |

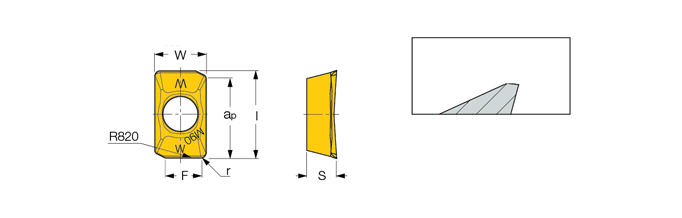

| Cutting Edge Length (L) | 0.659″ | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Insert Length (INSL) | 0.659″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.591″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Width (W1) | 3/8″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.23″ | Cutting Edge Effective Length (LE) | 0.591″ |
| Wiper Edge Length (BS) | 0.233″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | HELI2000 wiper insert, used for high surface finish. Use only one insert on the milling cutter. | Country of Origin | Israel |
| Remarks | Must be used together with HM90 ADKT 1505PDR inserts. Use a single wiper insert per tool. |
Shipping Info
Package Weight
0.018
