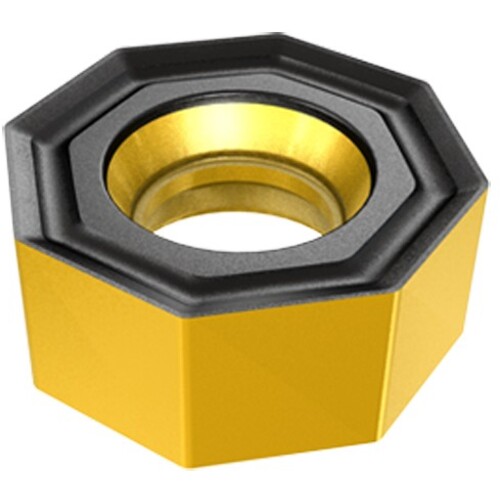

ONMU 050505-TN-MM IC4050
Milling Insert; ONMU050505TNMM IC4050 IC4050 × 0.205″ Thickness
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Grade | IC4050 |
| Application | | Facing | Milling Inserts | Profiling | | Shape | 135° Octagon |
| Corner Radius (RE) | 0.02″ | Maximum Feed per Tooth (fz(max)) | 0.0118 inch/tooth |
| Depth of Cut Maximum (APMX) | 0.138″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.512″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.205″ | Minimum Feed per Tooth (fz(min)) | 0.0118 inch/tooth |
| Wiper Edge Length (BS) | 0.197″ | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
Product Features
| Family Description | Octagonal double-sided inserts with 16 cutting edges (HELIDO 845 line). | Country of Origin | Israel |
| Remarks | ONHU - Precision ground ONMU - Utility |
Shipping Info
Package Weight
0.018
